4LZ-0.3 small harvester,a new generation fo tiny full-feed corn harvester, is elaborately developed combined with farmers' economic situation by our company through many years, specially for natural conditions include hills, mountains, zone with many river and difficult transport area.

Key words:

4LZ-0.3

Category:

Rice combine harvester

E-mail:

sales@mingsin.com

Message

4LZ-0.3

GOODS DESCRIPTION:
4LZ-0.3 small harvester,a new generation fo tiny full-feed corn harvester, is elaborately developed combined with farmers' economic situation by our company through many years, specially for natural conditions include hills, mountains, zone with many river and difficult transport area. This machine shows characteristics like small volume,compact organization,nice apperance, easy to operate, strongly mobility and high reliability. Besides, its cleaning device adopts screen cloth with better work effect. Cut grain device consists of up & down cutting machines, up for cutting grain, down for cutting stubble.In addition, by taking much experience of veer, gear, electrical, hydraulic mechanism from light vehicles and farm transporter, this machine will offer much comfortable and convenient operate procedure.

Parameters:

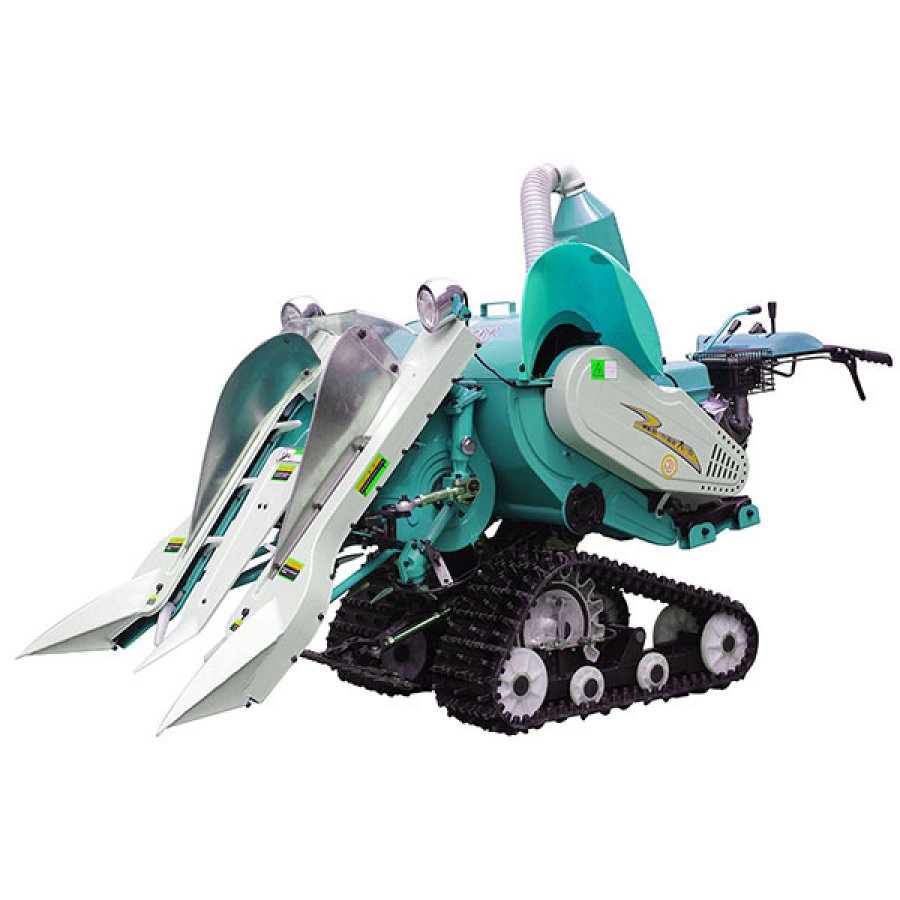

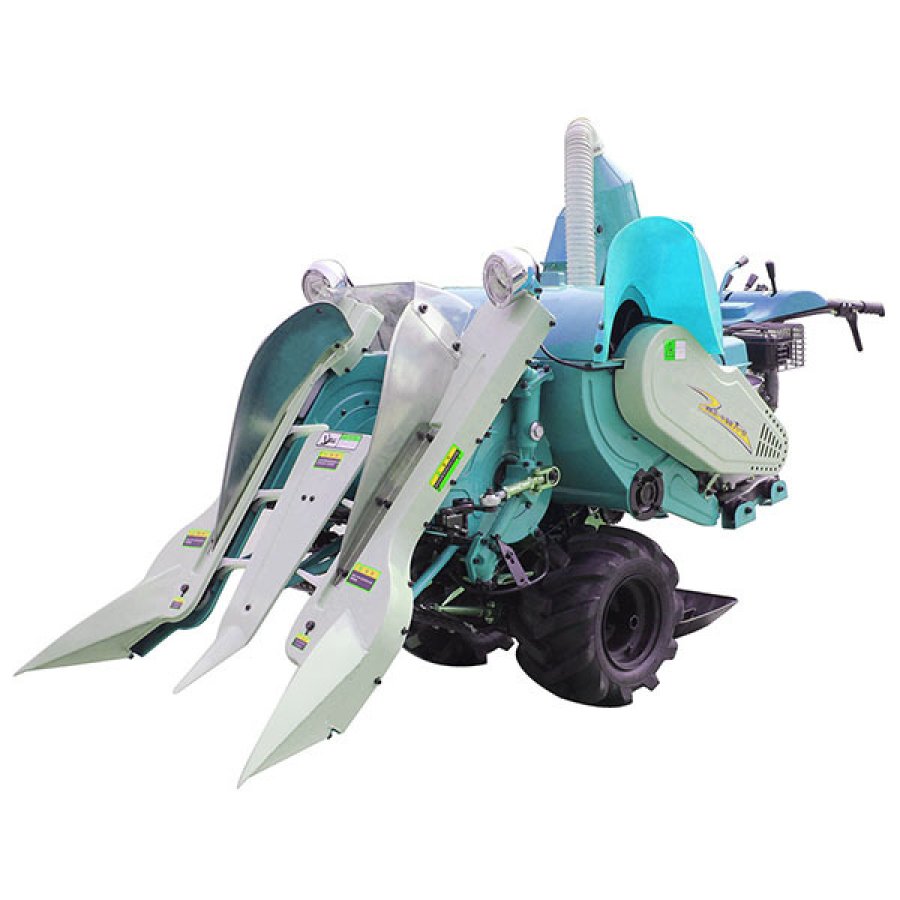

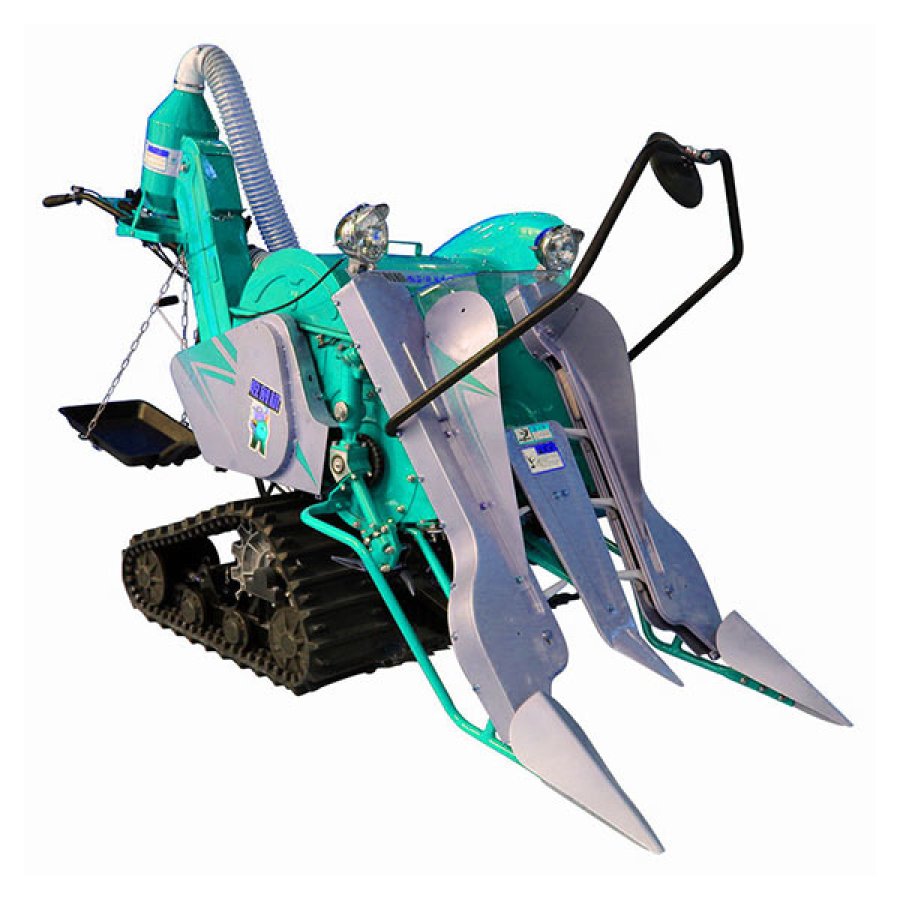

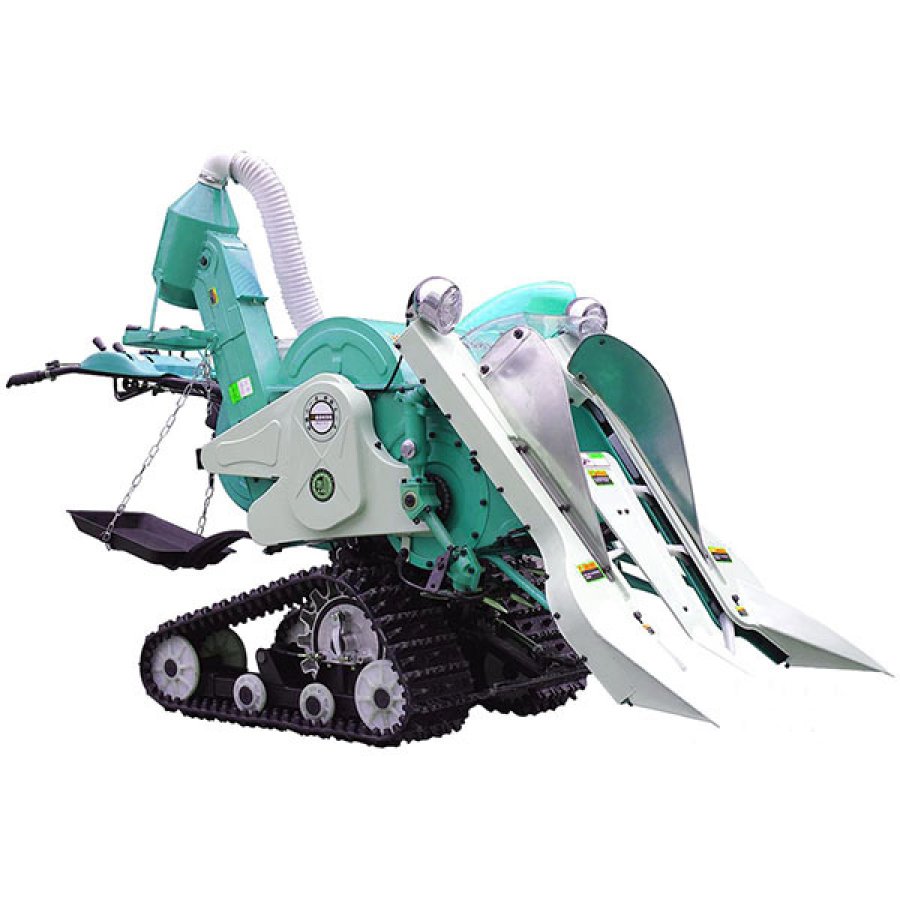

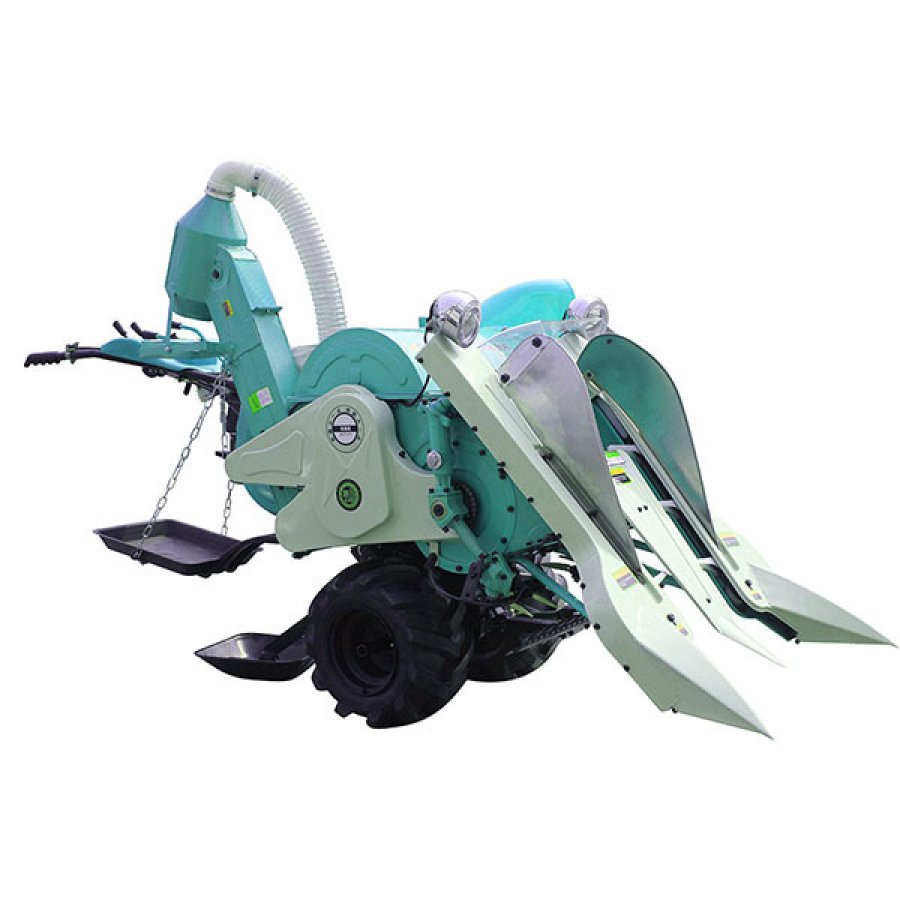

Model	4LZ-0.3 Combine Harvester	4LZ-0.3L Combine Harvester
Item	Wheel Type	Rubber Track Type
Structure	Self propelled wallking type	Self propelled rubber track
Working efficiency (ha/h.)	0.06	0.06 to 0.08
Fuel consumption (kg/ha.)	Below 20	Below 20
Dimenison (mm)	22008501100	250011001500
Weight (kg)	180	320
Cutting width (mm)	800	800
Feeding capacity (kg/s)	0.3	0.3
harvesting hegiht (mm)	650 to 1200	650 to 1200
Working gears	4	4
travelling speed (m/s)	Fast gear 0.9 ,while slow 0.4	Fast 0.9 ,while slow 0.4
Engine output (kW)	5.6	5.6
Fuel type	Unleaded automobile gasline	Unleaded automobile gasline

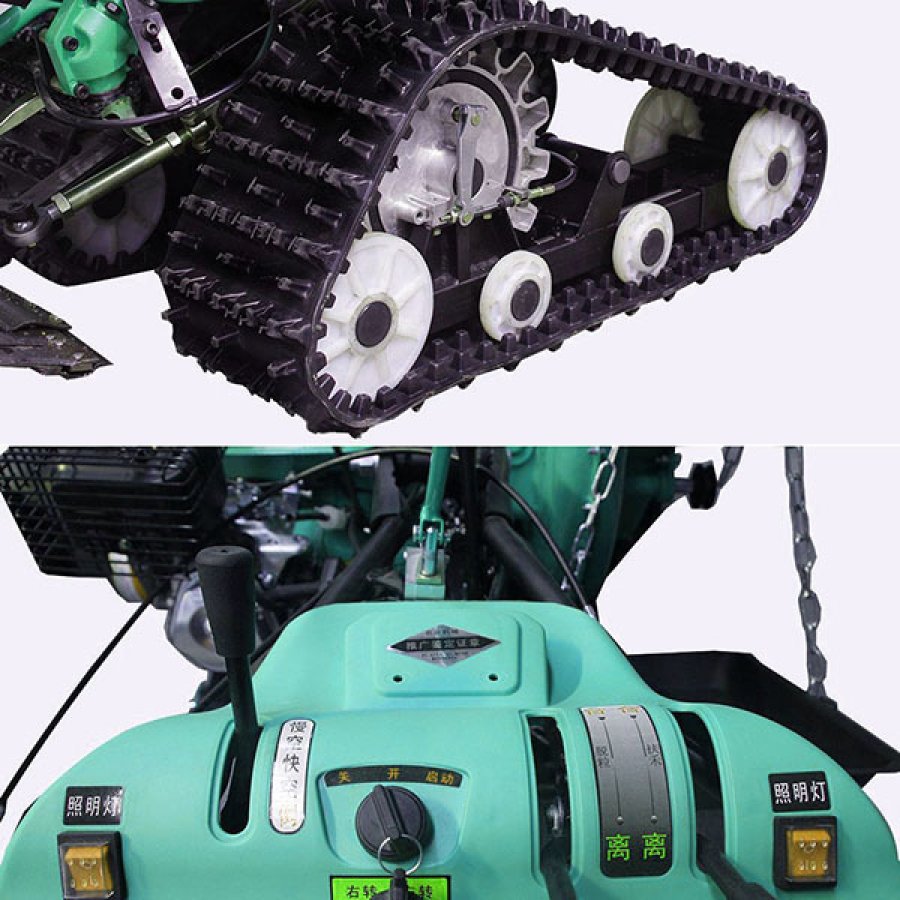

Rubber track	250mm width, ground touching length 870mm
Wheel	Diameter 420mm, width 288mm
WorkingGear type	Blet and tension wheel type
Traveling gear type	Blet and tension wheel type
Breakage rate	Less than 2%
loss rate	Less than 3%
Grain Impurity rate	Less than 7%
